Structure：

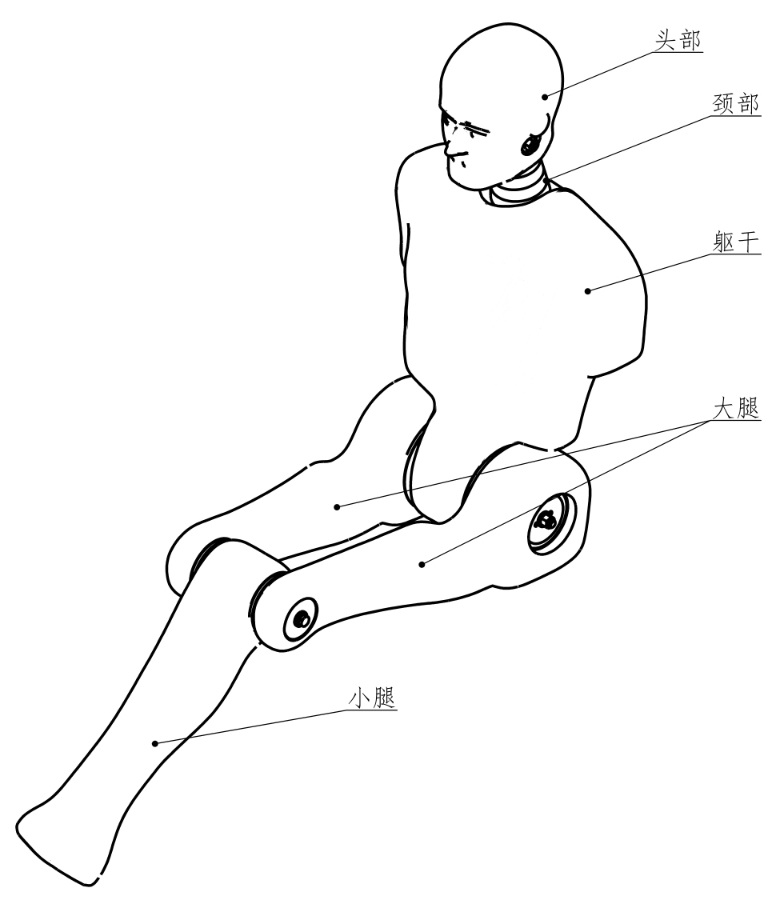

The ECE-R16 dummy is mainly composed of materials such as metal and polyurethane. Metal materials are used to simulate the skeleton of the dummy, while polyurethane materials are wrapped around the skeleton to simulate the skin and muscles of the dummy. The entire dummy mainly consists of six parts: head, neck, torso, two thighs and one calf, with each component connected by its joints. The dummy is wearing a specially designed jacket with a soft chest pad on the chest.

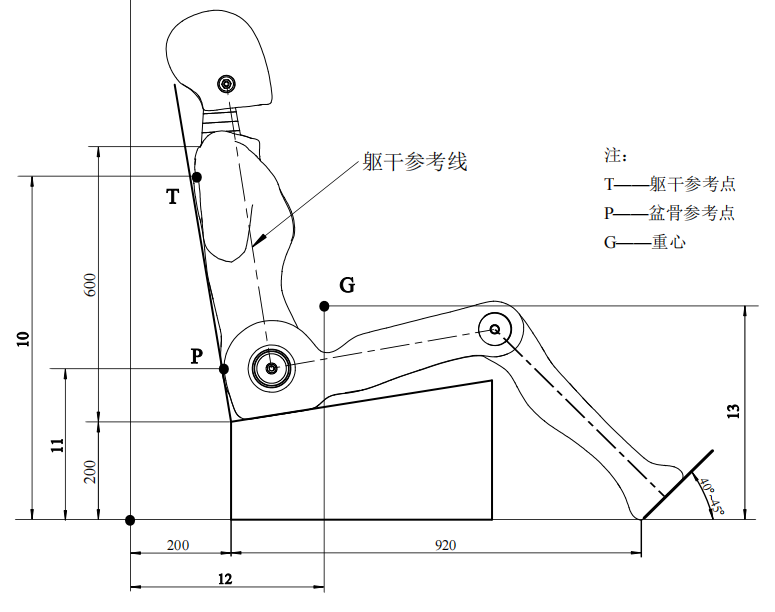

Main Dimensions：
R1：Head height
R2：Top axis point, center of head bolt
R3：Middle line of chain and upper torso
R4：髋关节，髋关节张紧螺栓中心
R5：膝关节，膝关节张紧螺栓的中心
R6：脚底
| 序号 | 测量参数 | 尺寸（mm） |
| 1 | 头部宽度 | 160±5 |
| 2 | 肩部宽度 | 465±5 |
| 3 | 髋关节位置躯干宽度 | 120±5 |
| 4 | 髋关节宽度 | 340±5 |
| 5 | 膝关节中心距脚底高度 | 510±10 |
| 6 | 髋关节中心距脚底高度 | 990±10 |
| 7 | 躯干上部平面距脚底高度 | 1470±10 |
| 8 | 头部螺栓中心距脚底高度 | 1600±10 |
| 9 | 头顶距脚底高度 | 1750±10 |
| 10 | T点高度
| 720±5 |
| 11 | P点高度 | 320±5 |
12
| G点宽度 | 395±10 |
| 13 | G点高度 | 454±10
|
质量分布：
| 序号 | 组件 | 质量（kg） |
| 1 | 头部总成 | 4.0±0.2 |
| 2 | 颈部总成 | 0.7±0.1 |
| 3 | 躯干总成 | 29.7±1.0 |
| 4 | 大腿总成（左/右） | 12.3±0.3 |
| 5 | 小腿总成 | 8.4±0.3 |
| 6 | 髋关节 | 3.1±0.1 |
| 7 | 膝关节总成 | 1.1±0.1
|
| 8 | 外套+胸垫 | 1.1±0.1 |
| 9 | 包含校正质量的总质量 | 75.5±1.0 |
传感器配置：
| 安装位置 | 传感器名称 | 通道 |
| 胸部 | 拉线位移传感器 | 1 |
| 臀部 | 拉线位移传感器 | 2 |
SAF Company promises the following after-sales service for its products:
1. Our company guarantees that all processes, key components, and other aspects during the manufacturing process meet the specified quality, specifications, and performance. The products we provide are brand new, manufactured with the latest design and appropriate materials, and comply with domestic and international regulations and standards.
2. From the date of product sale, there is a one-year warranty and we provide customers with services such as dummy recasting and repair.
3. Provide free training and guidance for users to conduct car safety dummy collision tests, ensuring that relevant test personnel master the correct use of dummies and the correct analysis of test data.
4. If the user's testing work is hindered due to product quality issues, after-sales personnel will communicate 24/7 via phone and arrive at the site within 48 hours to handle the issue.
5. Our company provides long-term spare parts procurement and supply services to customers.
6. After sales service hotline: 0731-84488719
The ECE-R16 dummy is a loading device for dynamic testing and research and development of seat belts in car collision simulation experiments. Its physical mass and external dimensions are designed according to the distribution of the human body of a 50th percentile adult male. This dummy is suitable for regulatory tests such as GB14166-2013 and ECE R16.
The ECE-R16 dummy is mainly composed of materials such as metal and polyurethane. Metal materials are used to simulate the skeleton of the dummy, while polyurethane materials are wrapped around the skeleton to simulate the skin and muscles of the dummy. The entire dummy mainly consists of six parts: head, neck, torso, two thighs, and one calf. Each component is connected to each other by its joints. The dummy is wearing a specially designed jacket and has a soft chest pad on the chest, which is also an integral part of the dummy.
