Structure：
TNO-10 dummy is mainly composed of materials such as metal, fiberglass, and polyurethane. Metal and fiberglass materials are used to simulate the skeleton of the dummy, while polyurethane materials are wrapped around the skeleton to simulate the skin and muscles of the dummy. The dummy mainly consists of five parts: head, neck, torso, thighs, and calves. Each component is connected to each other by its joints. The dummy is wearing a specially designed jacket and has a soft chest pad installed on its chest.

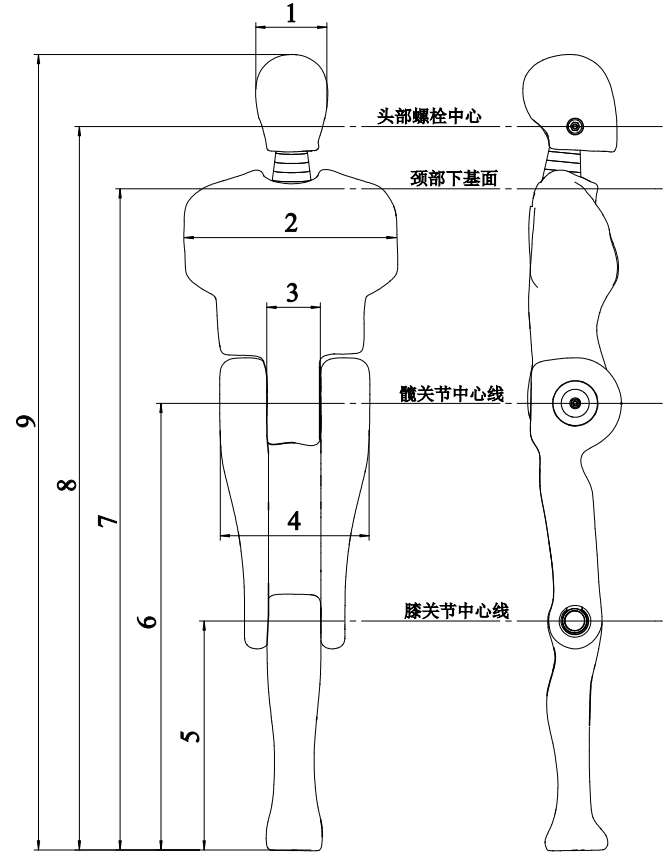

Main Dimensions：
Numbe | Name | Size（mm） |
| 1 | Head width | 160±5 |
| 2 | Shoulder width | 465±5 |
| 3 | Hip joint position torso width | 120±5 |
| 4 | Hip joint width | 340±5 |
| 5 |
Center of knee joint to sole of foot Height | 510±10 |
| 6 | Center of the hip to the sole of the foot height | 990±10 |
| 7 | Upper torso plane to sole of foot height | 1470±10 |
| 8 | Head bolt center to foot height | 1600±10 |
| 9 | Head to toe height | 1750±10 |
| 10 | T-Point Height | 720±5 |
| 11 | P-Point Height | 320±5 |
12
| G-Point width | 395±10 |
| 13 | P-Point Height | 454±10 |
Mass Distribution：
Numbe | Assembly | Weight（kg） |
| 1 | Head assembl | 4.0±0.2 |
| 2 | Neck assembly | 0.7±0.1 |
| 3 | Torso assembly | 29.7±1.0 |
| 4 | Upper leg assembly, left / right | 12.3±0.3 |
| 5 | Lower leg assembly | 8.4±0.3 |
| 6 | Hip joint | 3.1±0.1 |
| 7 | Knee joint assembly | 1.1±0.1
|
| 8 | Coat+chest pad | 1.1±0.1 |
| 9 | Total mass including corrected mass | 75.5±1.0 |
Sensor Configuration：
Installation Position | Sensor Name | Passage |
Head | Acceleration sensor | 3 |
Thorax | Wire displacement sensor | 1 |
| Buttocks | Wire displacement sensor | 2 |
