Structure：
Head--The head is largely made from synthetics. The head cavity is large enough to allow use of severalinstruments, including linear accelerometers and angular velocity sensors.
Neck--The neck is flexible and allows shear and bending in all directions. The segmented design allowsrealistic rotational behavior. The neck is equipped with a low-stretch neck-cord to preventexcessive elongation. The neck-cord is also designed to act as a safety feature in case of rubberfailure. 11 mm of free play is designed into the neck for improved biofidelity. A six-channel loadcell can be mounted at the neck-head interface.
Thorax--Composed of polyurethane skeleton and PVC skin. The displacement of the chest is measured by a wire sensor. The flexible shoulders are connected to the chest, allowing for some deformation. The accelerometer is installed on the thoracic spine to measure linear acceleration.
Abdomen--The abdomen is covered with PVC skin and filled with foam,Biomechanical data from children has been used todetermine the required stiffness.
Lumbar spine--The lumbar spine is composed of a flexible rubber column and a steel cable, which allows shear and bending in all directions. A six-channel load cell can be mounted between the lumbar spine and the pelvis.
Pelvis --The Q-dummy pelvis has removable hip joints. An accelerometer array can be mounted in thepelvis. Special hip joints are available that allow the hip joint to be locked for out of positiontesting by removing a spacer. These can allow the dummy to stand if supported.
Arms--The arm consists of two parts, the upper and lower arms, connected by the elbow joint. The shoulder joint is a spherical structure that allows for free rotation within a certain range.
Legs--The knee joints can be locked in any position. External support can be used to keep the dummy in a standing position.

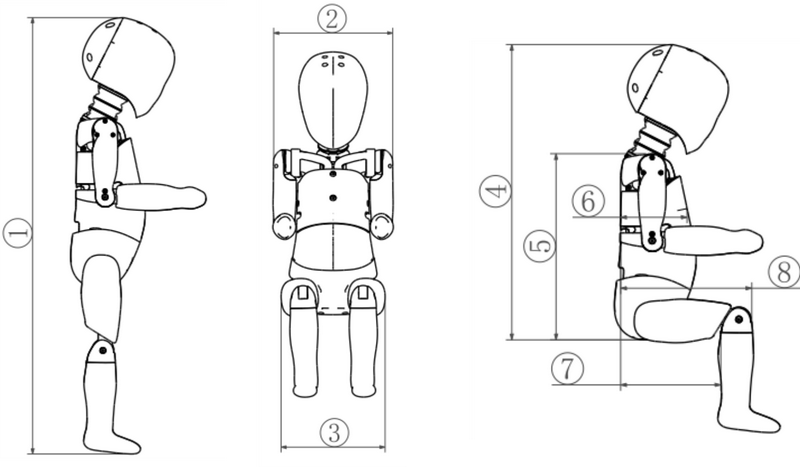

Main Dimensions：
Number | Name | Size（mm） |
| 1 | Stature | 900±9 |
| 2 | Shoulder width(maximum) | 227±9 |
| 3 | Hip width | 194±7 |
| 4 | Sitting height | 499±9 |
| 5 | Shoulder height | 309±7 |
| 6 | Chest depth | 113±5 |
| 7 | Buttock to popliteus | 185±9 |
| 8 | Buttock to front knee | 235±9 |
Mass Distribution：
Assembly | Weight（kg） |
| Head + neck (incl. acc. mount) | 2.80±0.10 |
| Torso (incl. acc. Mounts, string potmeter) | 4.74±0.25 |
| Upper legs（left/ right） | 1.14±0.10 |
| Lower legs（left/ right） | 0.92±0.10 |
| Upper arms（left/ right） | 0.58±0.10 |
| Lower arms（left/ right） | 0.62±0.10 |
| Suit | 0.30±0.05 |
| Total | 11.1±0.40 |
Sensor Configuration：
Installation Position | Sensor Name | Passage | Configuration Requirements |
Head | Single axis acceleration sensor | 3×1 | ★★★ |
Single axis angular acceleration sensor | 3×1 | ★ |
Neck | 6-Channel force sensor | 1×6 | ★★★ |
Thorax | Spinal acceleration sensor | 3×1 | ★★★ |
| Spinal acceleration sensor | 1×1 | ★★★ |
Bonded acceleration sensor | 4×1 | ★ |
Lumbar | 6-channel lumbar spine force sensor | 1×6 | ★ |
| Pygal | Single axis acceleration sensor | 3×1 | ★ |
Abdomen | Dual pressure sensors | 2×1 | ★ |
SAF Company promises the following after-sales service for its products:
1. Our company guarantees that all processes, key components, and other aspects during the manufacturing process meet the specified quality, specifications, and performance. The products provided are brand new, manufactured with the latest design and appropriate materials, and comply with domestic and international regulations and standards.
2. From the date of product sale, there is a one-year warranty and we provide customers with services such as dummy recasting and repair.
3. Provide free training and guidance for users to conduct car safety dummy collision tests, ensuring that relevant test personnel master the correct use of dummies and the correct analysis of test data.
4. If the user's testing work is hindered due to product quality issues, after-sales personnel will communicate 24/7 via phone and arrive at the site within 48 hours to handle the issue.
5. Our company provides long-term spare parts procurement and supply services to customers.
6. After sales service hotline: 0731-84488719
--Child restraint system (CRS) testing: This includes European ECE R44 and US FMVSS 213 regulations. The Q-series dummy is designed to replace the P-series dummy used in the CRS evaluation criteria.
--EuroNCAP test: The design of the dummy can withstand impacts that reach speeds close to the average level of EuroNCAP.
--NPACS testing: The New Program for Evaluating Child Restraint Systems (NPACS) protocol calls the Q-series frontal and side collision consumer testing program for CRS performance rating 4.
--Misalignment Test (OOP), including airbag interaction.
--ISO side impact program.
--GB27887 Standard Test for Restraint Systems for Child Occupants of Motor Vehicles.
The Q-series dummy is a children's series dummy launched after the P-series dummy. Compared to the P series dummy, the biomechanical characteristics of the Q series dummy have been improved, based on the dummy response defined by the biomechanical information response curves of children and scaled down adults. This series of dummies can be equipped with acceleration sensors, angular velocity sensors, force sensors, displacement sensors, etc., to evaluate the damage suffered by the dummy in various situations.
In order to make the child dummy easy to install and disassemble, SF Company has optimized the dummy structure to ensure that the dummy can be quickly disassembled and assembled, and to minimize the impact of sensors on the dummy's motion characteristics, protecting the integrity of sensors and cables inside the dummy.
